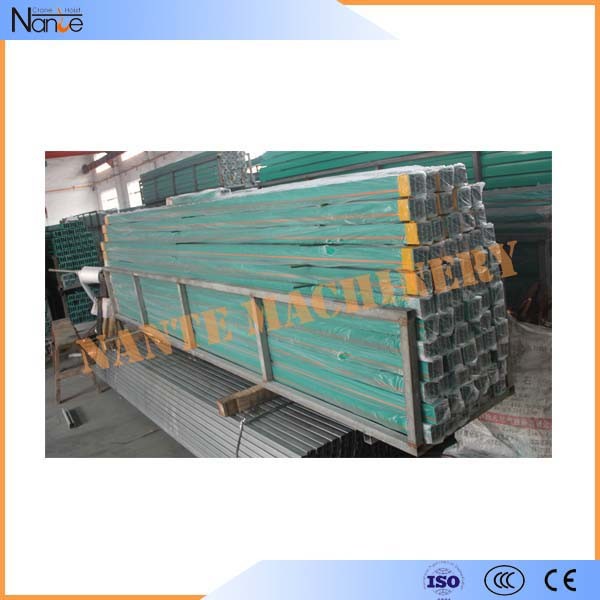

Corrosion Resistance Crane Components HFP56 PVC Enclosed Conductor Rails System

Corrosion Resistance Crane Components HFP56 PVC Enclosed Conductor Rails System

Corrosion Resistance Crane Components HFP56 PVC Enclosed Conductor Rails System
Corrosion Resistance Crane Components HFP56 PVC Enclosed Conductor Rails System Corrosion Resistance Crane Components HFP56 PVC Enclosed Conductor Rails System

बड़ी छवि :  Corrosion Resistance Crane Components HFP56 PVC Enclosed Conductor Rails System सबसे अच्छी कीमत

उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: Nante
प्रमाणन: ISO9001
Model Number: HFP56
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1 SET
मूल्य: N/A
Packaging Details: Seaworthy packings in container or bulk vessel
Delivery Time: 30days or according to client's need
Payment Terms: T/T, L/C
विस्तृत उत्पाद विवरण
सामग्री: पीवीसी रंग: हरा
मैक्स। वोल्टेज: 600V मॉडल: एचपीएफ
हाई लाइट:

bridge crane kits

,

overhead crane components

HFP56 PVC Enclosed Conductor Rails System

Product Description
Specifications

Wampfler Boxline 0842 type, Multiple Enclosed conductors, typically copper strips, For indoor and outdoor plants.
CCC, ISO, CE

NANTE HFP56 series is similar with Wampfler Boxline 0842
The powerail type HFP56 are totally enclosed touch-proff conductor systems for safe mobile power feeding of overhead crane, monorail systems, electirc hoist and so on.

Wampfler Boxline 0842, Conductor Rail, Powerails, Conductor Bar, Bus Bar, DSL System, Conductor Trolley Bar, IGS

Detailed Product Description
These systems feature multiple conductors, typically copper strips, in an insulated enclosure. The current collector tracks are inside the enclosure, with the joining electric cable connected via an opening (slot) in the bottom of the enclosure. The bottom opening can be sealed with a neoprene sealing strip to keep debris and fumes out. The current collector is self-guided in these systems and only needs to be towed with a towing arm. Multiple copper conductors in an enclosure (aluminium or PVC housing) is available in 3 to 16 conductors and amperage capacities from 30 to 240.
Enclosed conductor rails has been used successfully for many years and have been continuously improved and adapted in line with the latest state-of-the-art products. They are conductor lines in a rigid PVC housing with different copper cross sections for rated currents of 40-200 A. The current collectors, running in ball bearings, are guided by the housing. The mains power is transferred by spring-stored carbon brushes.

Type HFP for indoor plants is manufactured in green plastic-housings for 4 and 5 poles. At up to 100 A we can supply the Powerail with plug-in joints. Otherwise, the sections are connected bolted joints.

Application
The ranges of applications of HFP Power Rail Enclosed Conductor System
Overhead and elongated tracks for cranes.
Electric hoists, electric tools, stacking systems.
Electric tools
Other applications for supplying power to moving power load.

Design features:
Compact arrangement, corrosion resistance and simple assembly are its essential features.
Housing
Color green, PVC housing for 4 conductors. Standard section 4 m.
Other sections are available.
The ground conductor is identified by international color code.
Phase reversing prevented by design of the collector and housing.
Couplings
Through PVC joint caps.
Feed Sets
Line feeds or end feeds.
End caps
The open ends of the powerail are closed by end caps for HFP.
Hangers
Standard brackets for powerail attachment to crane girders are available.
Powerail with sliding and fixpoint hangers.
Standard distance between suspension points for indoor and outdoor installations: 1200mm.
Expansion during temperature fluctuation
The Expansion sections are required to compensate the different expansions between copper conductors and steel-or concrete structures, in varying temperatures without interrupting electrial power.
Expansion joints are used when the Powerail length between feeds, curves, switches or other fix points is exceeding 20m.
Install one expansion joint every 100m.

Current collectors
The current collectors are made of re-inforced polyester fiberglass, for high strength and light weight.
Spring loaded carbon brushes maintain uniform contact.
Connecting cables and hinged or flexible towing arms included.
Double Current collectors for transfer applications and higher amperage.
Hfp56 PVC Enclosed Conductor Rails System
Hfp56 PVC Enclosed Conductor Rails SystemHfp56 PVC Enclosed Conductor Rails System
HFP Series Multiple-Poles Conductor Rail System
Max. voltage 600v Bending strength 75N/mm²±10%
Dielectric strength 30-40kv/mm Tensile strength 40N/mm²±10%
Special resistance 5×10 15 Ohm×cm Leakage resistance CTI600-2,7
Surface resistance 10 13 Ohm×cm Design and Manufacturing Standard GB7251.2-2006
Distance between each suspension bracket (m) 1.2 Rail length per piece (m) 4
Flame retardant Class B1-no flaming particles, self-extinguishing
Permissible Ambient temperature Standard insulation -30°C- +70°C|High temperature insulation -20°C- +115°C|Low temperature insulation -40°C- +80°C
