Quadruple Hook OEM Standard Headroom Trolley Electric Wire Hoist SH Type 1/2 Fall

अच्छी गुणवत्ता Double Girder Overhead Cranes बिक्री के लिए
अच्छी गुणवत्ता Double Girder Overhead Cranes बिक्री के लिए
मैं अब ऑनलाइन चैट कर रहा हूँ

Quadruple Hook OEM Standard Headroom Trolley Electric Wire Hoist SH Type 1/2 Fall

चीन Quadruple Hook OEM Standard Headroom Trolley Electric Wire Hoist SH Type 1/2 Fall आपूर्तिकर्ता

बड़ी छवि :  Quadruple Hook OEM Standard Headroom Trolley Electric Wire Hoist SH Type 1/2 Fall

उत्पाद विवरण:

Place of Origin: Zhejiang, China
Model Number: SH 1/2

भुगतान & नौवहन नियमों:

मूल्य: N/A
Packaging Details: Container packing
Delivery Time: Based on client's needs
Supply Ability: 100000 Sets per Year
Contact Now
विस्तृत उत्पाद विवरण

Quadruple Hook OEM Standard Headroom Electric Wire Rope Hoists SH Type 1/2 Fall



Lifting capacity

0.5~50ton

Lifting Height

6~35m

Lifting Speed

5/15m/min





Travelling type steel wire rope hoist 1/2 fall for single girder or monorail is a hoist that adopt square simpler design. It utilizes good strength wire rope as the lifting medium. It is often powered electrically or pneumatically. This lifting device is made up of a rope storage drum, motor(s), gear box and braking system, and is suspended from a monorail or bridge beam(s) by means of a trolley. It may also be stationary mounted.A crane is a machine used for lifting and lowering a load, and moving it horizontally. A crane's drives may be manual, powered or a combination of both. Cranes are typically used when there is insufficient (or intermittent) flow volume such that the use of a conveyor cannot be justified. They provide more flexibility in movement than conveyors, and less flexibility in movement than industrial trucks. Loads handled by cranes are more varied with respect to their shape and weight than those handled by a conveyor. Most cranes utilize hoists for vertical movement, although manipulators can be used if precise positioning of the load is required.
 Many different types of cranes are used for material handling applications. These include overhead cranes as well as cherry picker type boom lifts, mobile and self-propelled cranes, straddle and counterbalanced (cantilevered) cranes. Portable and mobile floor cranes can be equipped with fixed or telescopic booms as well as mast rotation when equipped with outriggers. Lifting can be performed with the boom itself or a winch operated cable lift.Selection Criteria.The size of the hoist is determined by the load spectrum, average operating time, safe working load and rope reeving.

1. What are the operating conditions ?
2. What is the specified safe working load ?
3. To what height must the load be lifted ?
4. What is the required lifting speed ?
5. Do the loads need to be lifted and lowered with great accuracy ?
6. Is horizontal load travel necessary ?
7. How the hoist to be controlled ?



Whether chain hoist or wire rope hoist, electric or pneumatic; our line of powered hoists are ideal

in manufacturing, power generation, and industrial facilities where heavy items are lifted and

positioned as part of production or warehousing. Our new model high-capacity wire rope hoist

complements our line with capacities up to 50 Tons. We offer a full line of manual hoists, both

hand chain and lever tools, which are used primarily for maintenance and construction activities.

● 1 ton thru 5 ton Electric Hoists

● 3 ton thru 15 ton Monorail Wire Rope Hoists

● 5 ton thru 40 ton Top Running Wire Rope Hoists



Custom Built Hoists:

● Various Capacities

● Double Girder, Monorail, Jib cranes etc.

● All Types of Open Winches

● Polar Trolley Hoists

● Critical Lift

● Twin Hook

● Quadruple Hook

● Explosion Proof

● Indoor or Outdoor Use

● Transfer Cars

● Hazardous Locations

● Two Drum Bucket

● Automated Hoisting Systems

● Hot Metal Steel Mill Hoists - AC/DC



Common Features:

• Conical rotor, Squirrel Cage, 1 hr. Rated, Class 'F', Insulated crane duty motor.

• Electromechanical, Conical disc type, 100% failsafe maintenance free Brake, eliminates

need of coil & thereby coil burning and down time problems.

• Easily portable because of compact design and low weight

• Wear-resistant, Heat-treated, Grade 80, Special alloy steel calibrated load chain.

• A special conical friction clutch housed inside the gearbox, protects the hoist against

overloading. It also works as Emergency limit stop and protects overhoisting and over lowering

• Specially designed Chain guide enables Smooth, Jerkless, Free and Silent running of

Chain over the Load wire rope sprocket

• All Gears are made of Carbon / Alloy steel, high precision cut, hardened and tempered,

and are mounted on antifriction bearings.

• Hoist is supplied with a pendant push button station and a two mtrs. Long pendant cable.

Additional cable lengths are available on request.

• Hoist is supplied with a 3 mtrs. Long power supply cable. Extra length can be supplied

on request.

• Hoist is supplied with wire rope for three mtrs. Height of lift. Additional chain can be

provided for higher height of lift, on request.



Special Feature:

  • The normal travelling speed: 20m/min (dual speed 20/6 is optional)
  • Hoist electrics cubicle including low voltage transformer.
  • Standard power supply: 380V/400V/415/50HZ, 230V/440V/460V/60HZ
  • Motor protection IP54 insulation class F.
  • Push button box with emergency button.
  • Hook with safety latch.
  • Tropicalised motor for hoisting and travelling.
  • Rope guide for use in aggressive environment.
  • Remote control is optional.
  • Overload protection is optional.

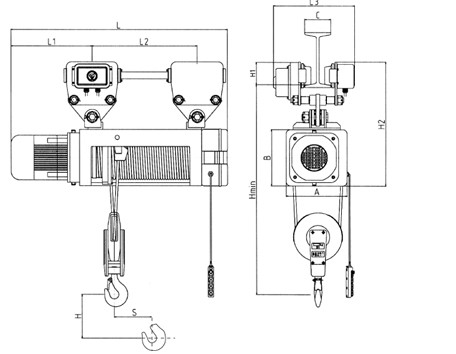

General Drawing or Sketch or Draft Drawing

Quadruple Hook OEM Standard Headroom Trolley Electric Wire Hoist SH Type 1/2 Fall

STANDARD HEADROOM TROLLEY HOIST SH TYPE            (1/2ROPEREEVING)



Model Lifting
Capacity
(t)
Working
Duty
Lifting
Motor
Power(kw)

Lifting
Speed
(m/min)
Travelling
Speed
(m/min)
Dimension L A B H1 H2 Hmin L1 L3 C
6m 9m 12m 18m 24m 30m
SH2-2/1B 0.5 M4 1.1
1.1/0.3
9
9/2.2
20
20/6.7
L 534 661 678 813 948 1083 256 244 103 103 410 281 374-424 74-124
LO 223 291 358 493 628 763
S 66 99 132 198 264 330
SH3-2/1B 1 M4 1.5
1.5/0.4
8.5
8.5/3.2
20
20/6.7
L 886 983 1080 1274 1468 1662 264 244 103 103 430 390 394-424 94-124
LO 324 421 518 712 906 1100
S 96 144 192 288 384 480
SH4-2/1B 2 M4 3
3/0.8
7.3
7.3/1.8
20
20/6.7
L 1032 1136 1240 1449 1657 1866 325 300 103 103 520 462 400-424 100-124
LO 389 493 597 806 1014 1223
S 104 156 209 313 417 521
SH5-2/1B 3 M4 4.5
4.5/1.0
7
7/1.6
20
20/6.7
L 1160 1269 1378 1597 1815 2033 360 335 175 175 600 550 432-482 102-152
LO 414 523 632 851 1069 1287
S 110 164 219 328 437 546
SH6-2/1B 5 M4 7.5
7.5/2.0
7.3
7.3/1.8
18
18/6
L 1235 1350 1464 1693 1922 2151 403 370 175 175 700 550 460-482 130-152
LO 459 574 688 917 1146 1375
S 118 177 236 354 472 590
SH7-2/1B 8 M4 13
13/3.2
8
8/2
18
18/6
L 1473 1590 1706 1939 2172 2405 470 440 175 175 760 725 462-492 142-162
LO 505 622 738 971 1204 1473
S 117 175 233 350 466 583
